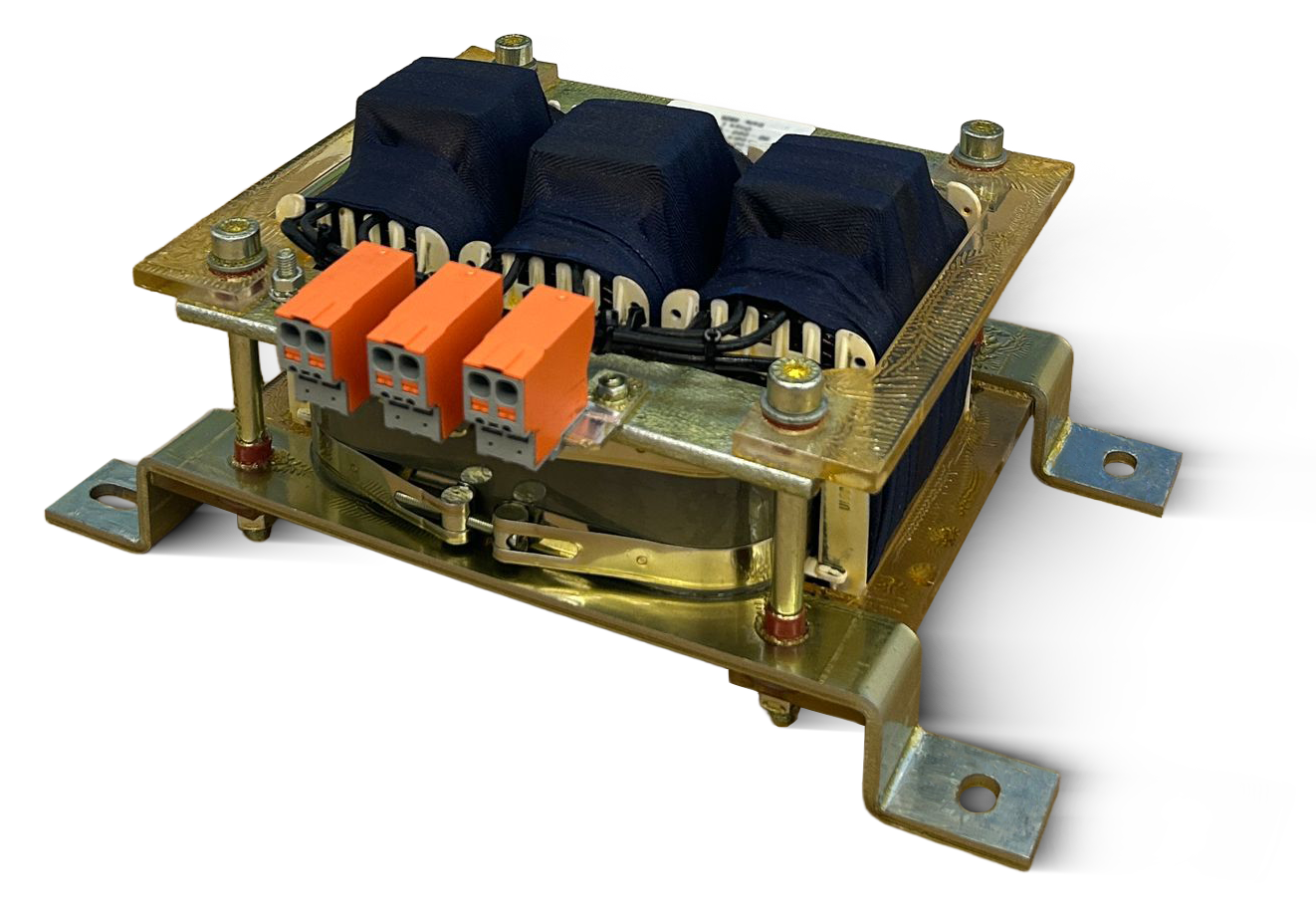

3-phase chokes

Standards:

  • Design according to DIN EN 61558 / VDE 0570

  • Sizes according to DIN EN 41300

  • CE marking

  • ROHS-compliant

  • With UL material or UL approval on request

Technical data:
  • Structure and mounting according to customer requirements
    • Mounting bracket
    • Spacer bolts
    • Connection clamps
    • stranded wire connections / wire connections
    • horizontal / vertical version
    • built into the housing
    • open version
    • potted version
    • Version with transformer plate for frequency ranges from 50Hz to 900Hz
    • Version with strip material for frequency ranges from 50Hz to 15,000Hz
  • Insulation class B=130°C (F=155°C on request)
  • Ambient temperature -40°C to 40°C (higher on request)
Application:
  • Mains choke
  • Smoothing choke
Size:

The size results from the energy of the choke (E = L * I²), the desired current  and desired inductance can be freely selected.

Example:
  • Desired inductance value: 2mH
  • Desired current value: 15A
  • Results in an energy of 225mWs = size EI125_125_26
Size Energy [mWs]
per phase		 Length [mm] Width [mm] Height [mm] Weight [kg]
EI65_65_21 35 35 85 70 0,8
EI80_80_26 70 50 100 85 1,4
EI100_100_30 150 60 130 110 2,9
EI125_125_26 240 65 160 140 4
EI125_125_41 350 80 160 140 1,9
EI150_150_41 700 90 190 180 13
EI190_190_41 1100 95 240 200 17
EI200_200_61 1800 120 250 215 23
EI220_220_71 2500 130 275 235 34
EI250_250_78 3200 150 310 270 44
EI300_300_78 4900 150 360 360 66
EI350_350_72 5800 170 360 360 74
EI350_350_131 6600 230 360 360 110
EI400_400_110 7200 230 440 410 125
EI500_500_100 13500 280 580 580 190
EI600_600_150 22000 310 660 650 290

Other sizes/intermediate sizes on request. Detailed drawings and 3D models are available with your order. The specified dimensions and weights may change due to your individual requirements/design requests.
