Standards:

• Design according to DIN EN 61558 / VDE 0570

• Sizes according to DIN EN 41300

• CE marking

• ROHS-compliant

• With UL material or UL approval on request

Technical data:

• Structure and mounting according to customer requirements
  • Mounting bracket
  • Spacer bolts
  • Connection clamps
  • stranded wire connections / wire connections
  • horizontal / vertical version

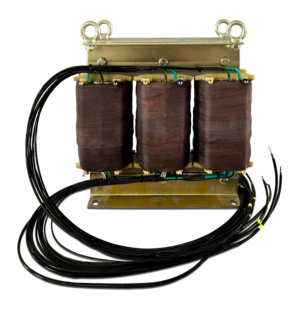

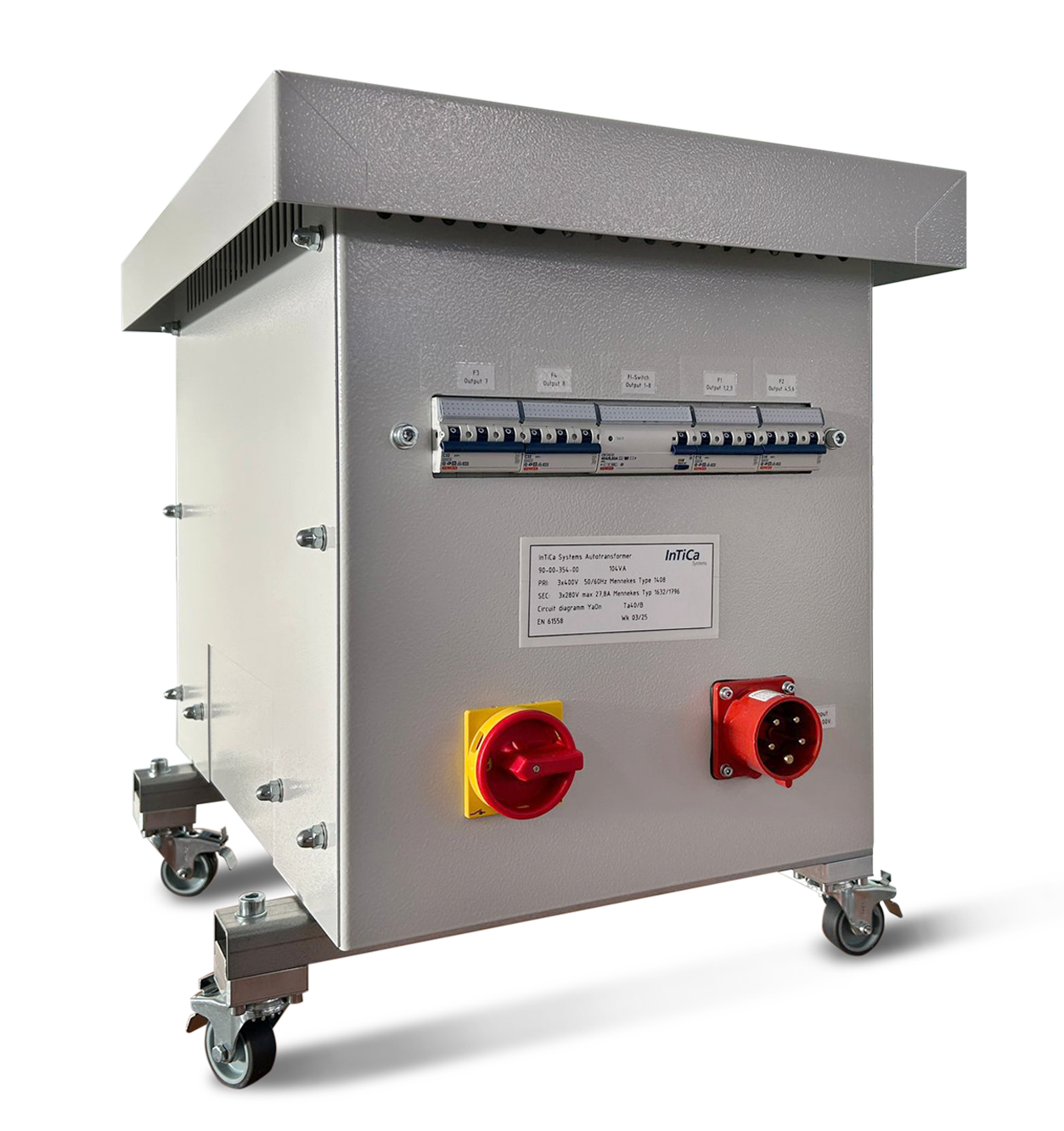

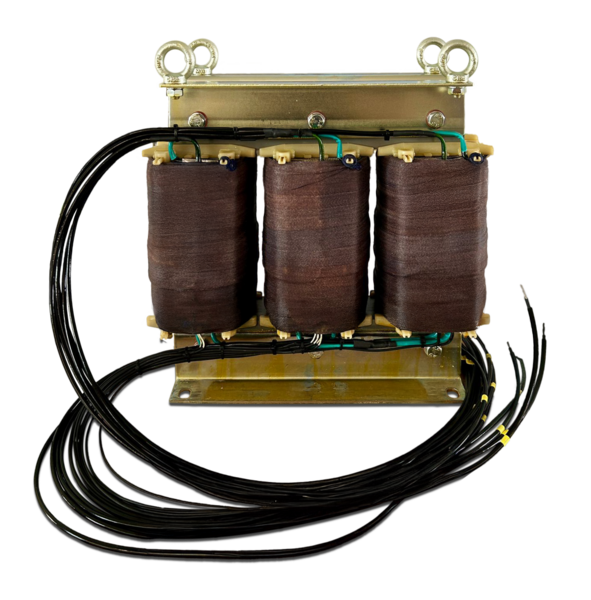

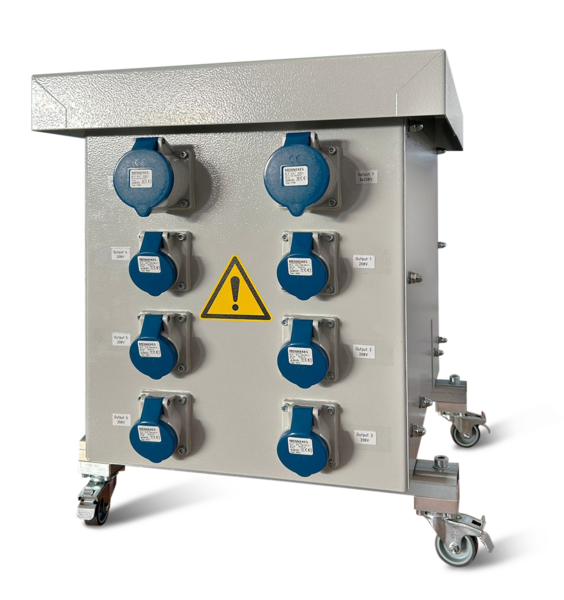

  • built into the housing
  • open version
  • potted version
  • Version with transformer plate for frequency ranges from 50Hz to 900Hz
  • Version with strip material for frequency ranges  from 50Hz to 15,000Hz
• Insulation class B=130°C (F=155°C on request)
• Ambient temperature -40°C to 40°C (higher on request)
• Power classes: 35VA to 800kVA
• Suitable for high voltages up to 10,000V
• PRI-SEC isolating voltage: standard 5000VAC to 20,000VDC

Application:

• Isolating transformer
• Adaptive transformer
• Audio transformer
• Ripple-free transformer
• Autotransformer

Size:

The size is determined by the power of the transformer. Input/output voltages and currents can be freely selected.
