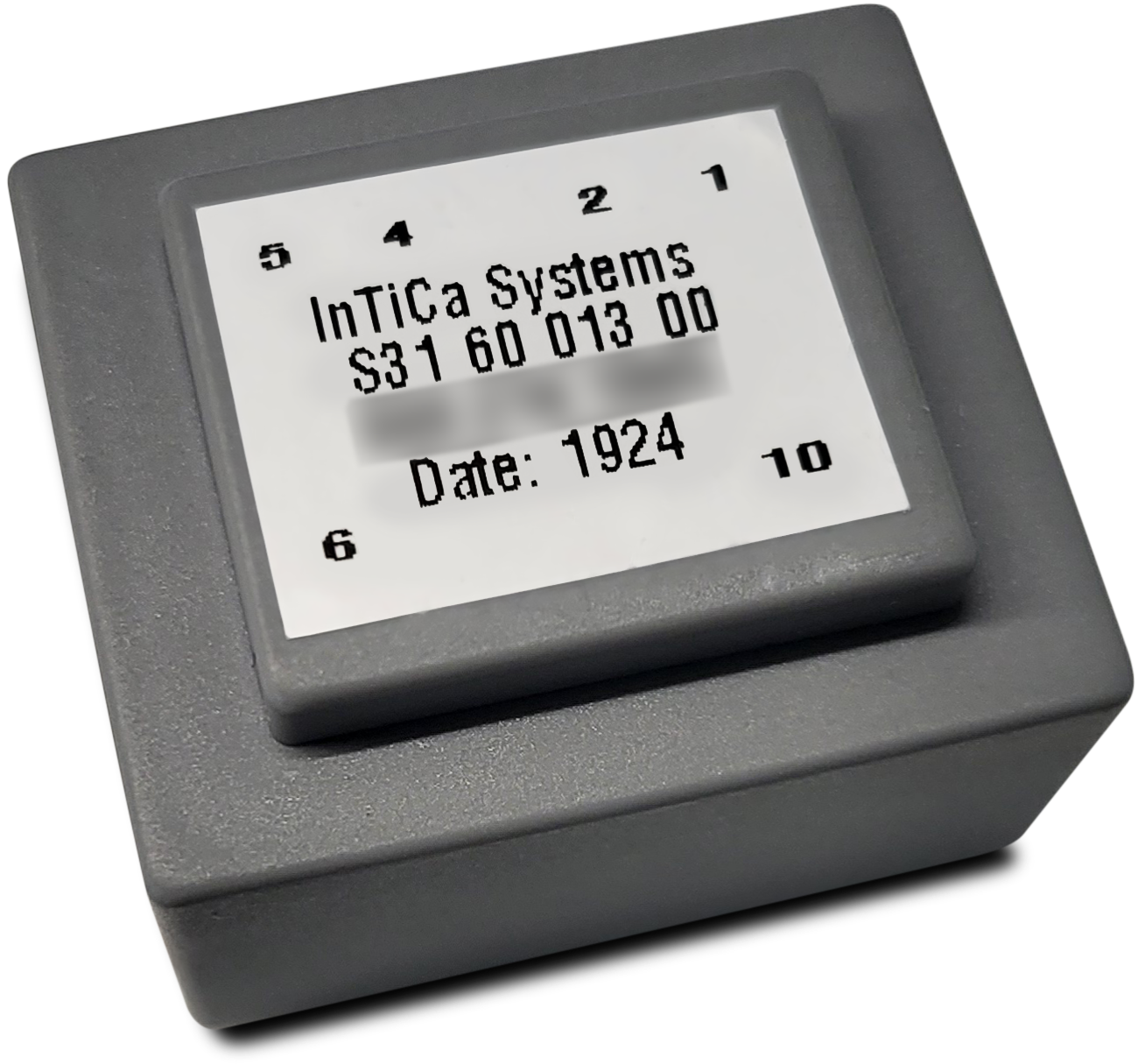

Print transformers

Standards:

  • Design according to DIN EN 61558 / VDE 0570

  • Sizes according to DIN EN 41300

  • CE marking

  • ROHS-compliant

  • With UL material or UL approval on request

Technical data:
  • Structure and mounting according to customer requirements
    • PCB mounting (circuit board)
    • Spacer bolts
    • Connection clamps
    • open variant
    • Encapsulated version
    • Version with transformer plate for frequency ranges from 50Hz to 900Hz
    • Version with strip material for frequency ranges from 50Hz to 15,000Hz
  • Insulation class B=130°C (F=155°C on request)
  • Ambient temperature -40°C to 40°C (higher on request)
  • Power classes: 15VA to 150VA
  • PRI-SEC isolating voltage: 5000VAC
Application:
  • Isolating transformer
  • Adaptive transformer
  • Audio transformer
  • Ripple-free transformer
  • Autotransformer
  • Flat transformer
Baugröße:

The size is determined by the power of the transformer. Input/output voltages and currents can be freely selected.

Size Power [VA] Length [mm] Width [mm] Height [mm] Weight [kg]
EI30_12 2 26 33 24 0,08
EI42_14 5 38 44 33 0,20
EI48_20 12 44 50 35 0,30
EI54_18 20 48 56 43 0,40
EI60_21 30 54 64 46 0,55
EI66_30 40 60 70 55 0,90
EI78_36 90 70 83 70 1,50
EI84_43 140 75 90 78 2,00
UI30_7,5 4 54 44 20 0,16
UI30_16,5 10 54 44 29 0,25
UI39_13,5 20 69 57 29 0,35
UI48_17 36 85 70 39 0,90
UI48_26 66 85 70 48 1,10

Other sizes on request. Detailed drawings and 3D models are available when ordering. The specified dimensions and weights may change due to your individual requirements/design requests.
