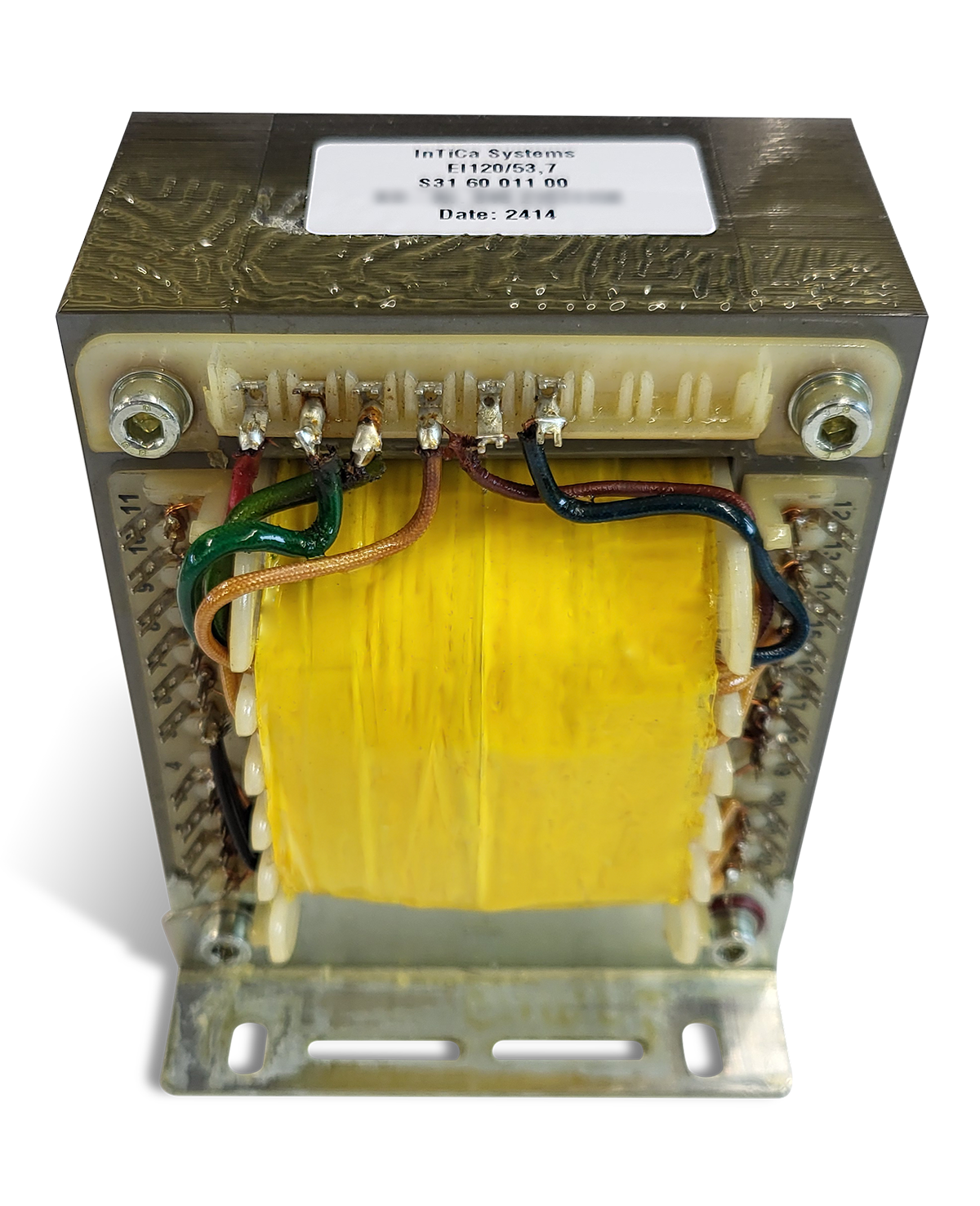

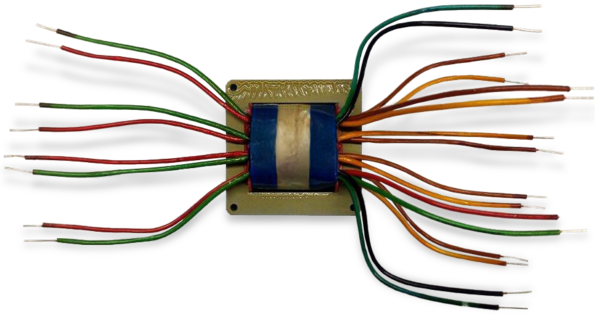

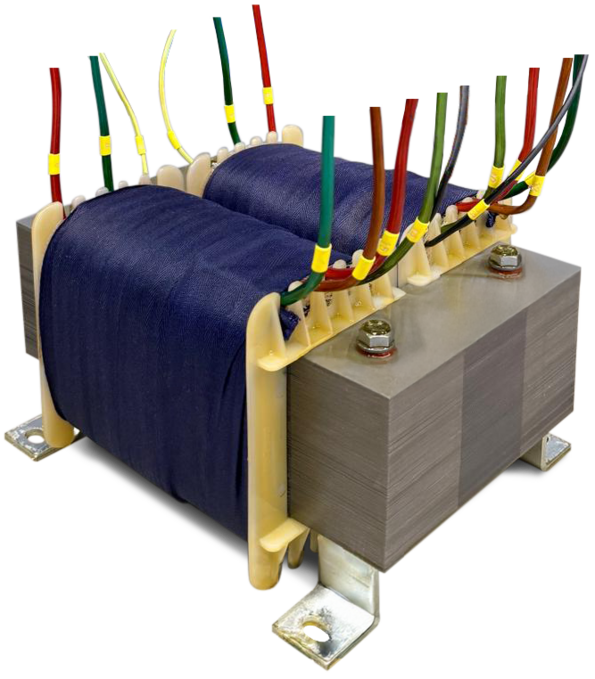

1-phase transformers

Standards:

  • Design according to DIN EN 61558 / VDE 0570

  • Sizes according to DIN EN 41300

  • CE marking

  • ROHS-compliant

  • With UL material or UL approval on request

Technical data:
  • Structure and mounting according to customer requirements
    • Mounting bracket
    • Spacer bolts
    • Connection clamps
    • Stranded wire connections / wire connections
    • Horizontal / vertical version
    • Built into the housing
    • Open version
    • Potted version
    • Version with transformer plate for frequency ranges from 50Hz to 900Hz
    • Version with strip material for frequency ranges from 50Hz to 15,000Hz
  • Insulation class B=130°C (F=155°C on request)
  • Ambient temperature -40°C to 40°C (higher on request)
  • Power classes: 15VA to 10kVA
  • Suitable for high voltages up to 10,000V
  • PRI-SEC isolating voltage: standard 5000VAC to 20,000VDC
Application:
  • Isolating transformer
  • Adaptive transformer
  • Audio transformer
  • Ripple-free transformer
  • Autotransformer
Size:

The size is determined by the power of the transformer. Input/output voltages and currents can be freely selected.

Size Power [VA] Length [mm] Width [mm] Height [mm] Weight [kg]
EI54_18 15 44 54 42 0,40
EI 60_21 23 52 60 50 0,53
EI66_23 30 56 66 55 0,66
EI 78_27 60 64 78 62 1,20
EI84_43 100 72 84 78 1,90
EI96_45 200 82 96 85 2,95
EI96_59 250 82 96 100 3,50
UI75_41 270 128 118 90 3,80
UI90_51 500 175 125 100 6,80
UI114_40 750 195 150 100 9,00
UI120_51 1250 205 165 110 13,00
UI150_52 2000 255 205 120 21,50
UI168_92 4600 285 230 170 40,00
UI180_92 5500 310 250 180 50,00
UI210_133 8200 360 290 230 100,00
UI240_140 15000 410 310 260 150,00

Other sizes on request. Detailed drawings and 3D models are available when ordering. The specified dimensions and weights may change due to your individual requirements/design requests.
