Toroidal chokes

Standards:

  • Structure according to DIN EN 61558/VDE 0570

  • Sizes according to DIN EN 50081-1/-2

  • CE marking

  • ROHS-compliant

  • aWith UL material or UL approval on request

Technical data:
  • Design and mounting according to customer requirements

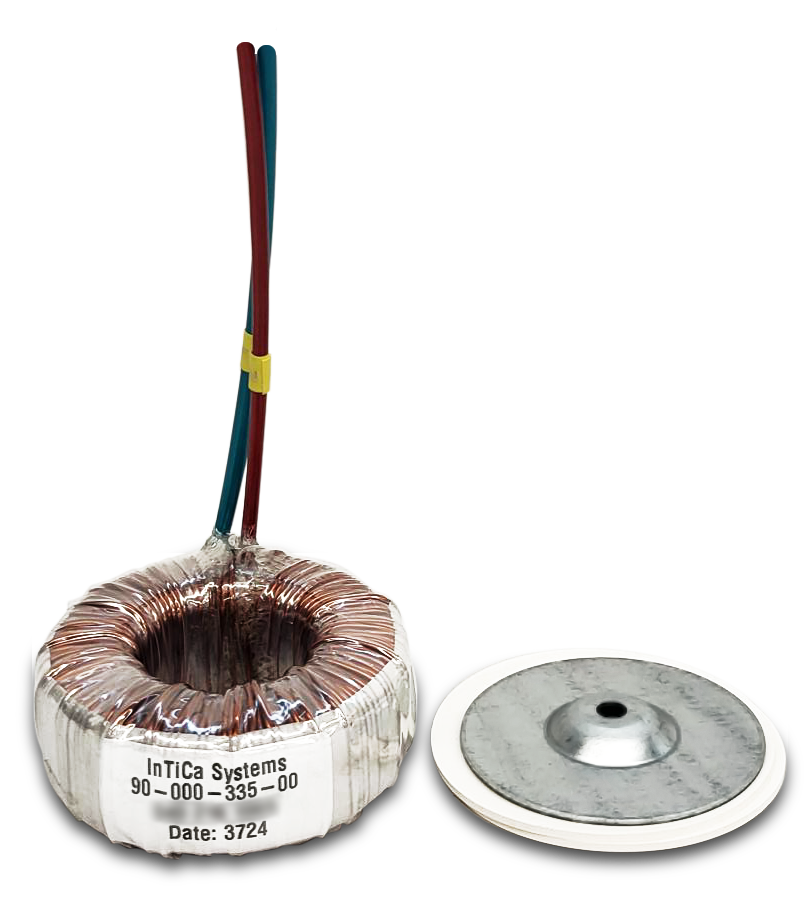

    • Open design
    • stranded wire connections/wire connections
    • horizontal/vertical design

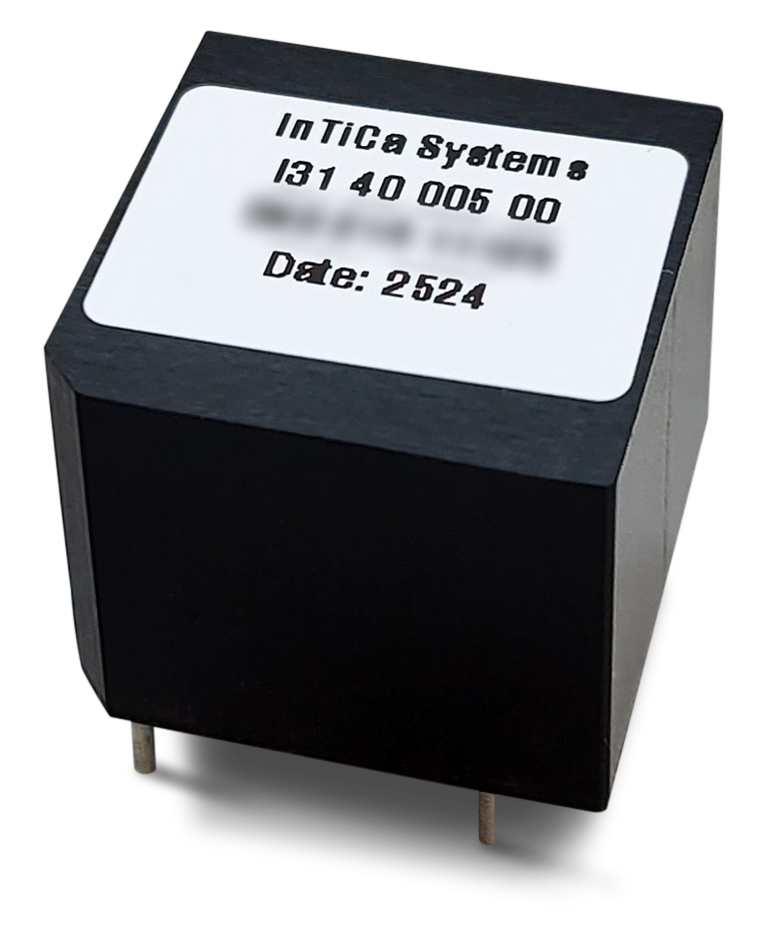

    • built into the housing
    • open variant

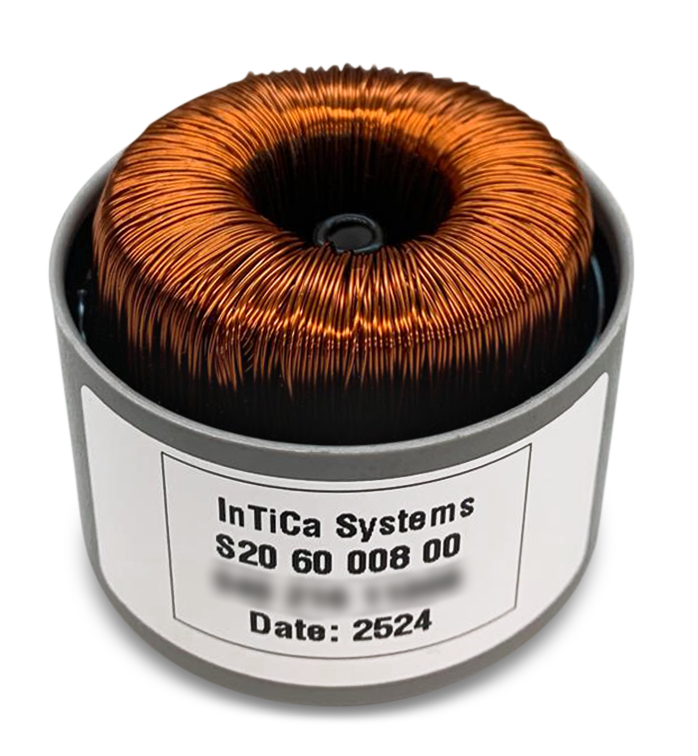

    • potted version
    • Ferrite core choke
    • Pure iron choke
    • Frequency ranges up to 100kHz (ferrite up to 300kHz)
  • Insulation class B=130°C (F=155°C on request)
  • Ambient temperature -40°C to 40°C (higher on request)
Application:
  • PFC choke
  • Current-regulated choke (2 windings)
  • Mains choke
  • Smoothing choke
  • Storage choke
Size:

The size results from the energy of the choke (E = L * I²), the desired current and desired inductance can be freely selected.

Example:
  • Desired inductance value: 2mH
  • Desired current value: 15A
  • Results in an energy of 225mWs = size EI84_43
Current [A] Energy [mWs] Gauge [mm] Height [mm] Weight [kg]
1,0 0,5 bis 2,5 25 10 0,035
1,5 2,5 bis 5,0 35 15 0,080
2,0 5,0 bis 7,5 40 15 0,090
2,5 7,5 bis 10,0 45 15 0,120
3,0 10,0 bis 13,0 50 15 0,140
4,0 13,0 bis 16,0 50 20 0,200
5,0 16,0 bis 20,0 50 25 0,220
6,0 20,0 bis 22,5 55 25 0,240
8,0 22,5 bis 25,0 55 30 0,260
10,0 25,0 bis 27,5 60 25 0,280
15,0 27,5 bis 30,0 60 30 0,300
20,0 30,0 bis 32,5 60 30 0,310
25,0 32,5 bis 35,0 65 30 0,330
30,0 35,0 bis 37,5 65 35 0,380
40,0 37,5 bis 40,0 70 35 0,400
50,0 40,0 bis 45,0 80 40 0,500

Other sizes/intermediate sizes on request. Detailed drawings and 3D models are available with your order. The specified dimensions and weights may change due to your individual requirements/design requests.
